Classic Liquid Fuel Stoves

A look at the origins and evolution of our favorite camp stove…

This post was going to be a few words about the Primus stoves we all love and some images I’ve collected from around the web.  As usual, I found myself rambling all over the topic without a clear direction but here is a bit of an overview of liquid fuel stoves and how they have evolved over the past 150 years.  Clicking the image will link to a larger version in most cases.

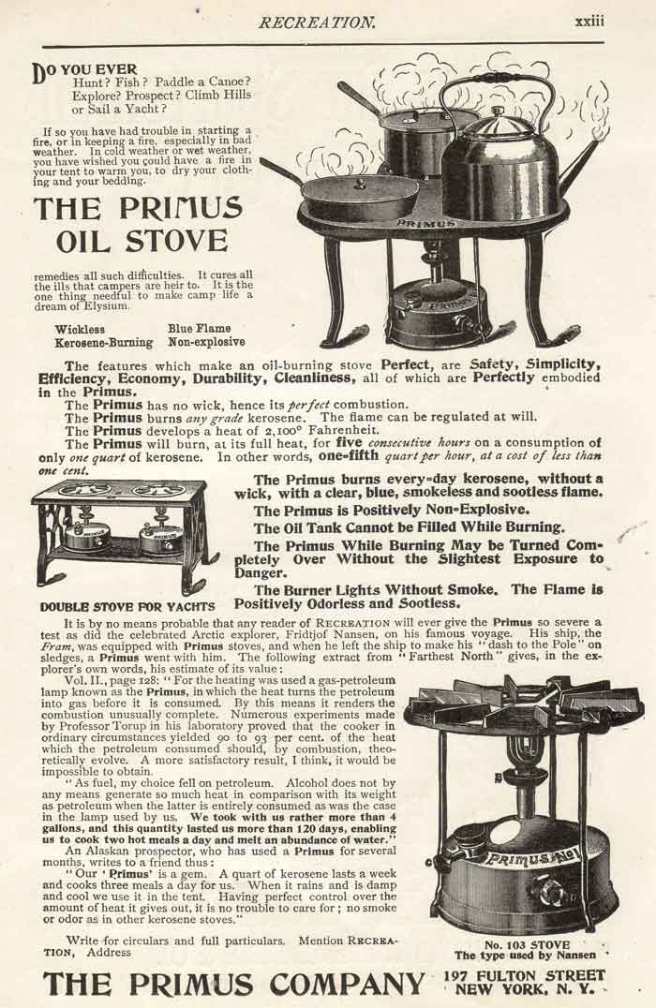

1392681847-primus_usa_1899

Primus advertisement 1899. Image found on the Classic Camp Stove Forum.

Outdoor cooking has become something of a lost art for those of us raised in the industrial world, but not too long ago, what we think of as camp cooking was just plain cooking.   Several major advances made in the 19th and early 20th centuries resonate in our lives without a second thought from most of us.  Most of our grandparents or great-grandparents cooked with solid fuel (mostly wood, peat, manure, or charcoal) and their grandparents may have felt fortunate to even be able to cook indoors in bad weather. Much of the world still cooks this way and it is an eye-opener for those raised in the more industrialized countries if and when they travel abroad.

In the 19th century, the Caravan Craze, global expansionism, and long-distance campaign warfare sent massive numbers of otherwise “civilized” people back to the outdoors; often with high expectations about the board-of-fare.  Although we, as a species, have cooked over campfires for many thousands of years, this is not always convenient or desirable; whether for speed, lack of fuel, or need for a low profile in the hedgerows.  An early response to this need was the brazier or hibachi-type grill reinvented on numerous occasions in various parts of the world.  These  stoves can use small wood or charcoal but are heavy, smoky, and need large volumes of solid fuel for sustained use.  Not a good option for the traveller (sic).  When coal oil and kerosene became common, liquid fuel appeared to be the answer.

Supper

Tea at the Caravan with the Classic Svea Stove.

Although common now, liquid fuel stoves have not always been a good or safe choice for cooking on the road or in camp.  Early portable stoves used a wick and some variety of coal oil for the fuel.  The flame created with a wick is relatively low-temperature, causing incomplete combustion.

In fact, the early instructions for safe stove use are nearly the same as that of fireworks.

“LAY ON GROUND. LIGHT FUSE. GET AWAY! – USE OUTDOORS ONLY – UNDER ADULT SUPERVISION.”

Another feature of the earliest wick stoves, due to their relatively low burning temperature, is that they exude fumes and soot, like a low-quality oil lamp. This sooting and smoke make them unpleasant at best, especially in confined spaces.  Though not a terrible option for the 1850s, they are nothing as good as what would come in the next generation.

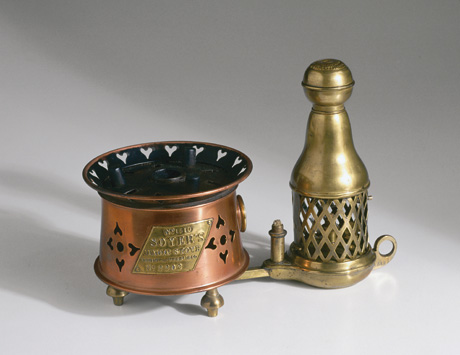

Soyer

Soyer stove.

The advancements of Alexis Soyer – The contraption above is one of the many inventions given to us by Alexis Soyer, celebrity chef and cooking guru of mid-19th century Britain.  Many of his cookbooks are still referenced and can be found for free on the web.  He was, by the way, born a Frenchman but we can forgive him this oversight for his many wonderful contributions to the world of food.

Not only did Mssr. Soyer invent several useful contraptions for cooking, but he is credited with organizing the first Soup Kitchen to help the starving Irish during the Famine.

As a further claim to fame, the large unit stove he developed for the British army during the Crimean War was such and excellent design it was still regular issue 120 years later.  But I digress from our theme.

Soyer_StoveSeen in use above, this little stove was revolutionary for the time but still left much to be desired, especially if one wanted to cook with it indoors.  I don’t believe you’d catch a sane cook using something of this sort on an actual tablecloth unless it was made from asbestos but it seemed like a good idea for the advertisement.  In the 19th century, both camp and home cookery were beginning to change drastically; up to this time the two were not very different.  Along with improvements in stoves, better cooking pots, and roasting pans, other kitchen gadgets were being developed to help make cooking better and easier.  A humble and often overlooked kitchen appliance was invented in this period…

The wind-up cooking timer –

soyer-cooking-alarm

Soyer’s Alarum.

Victorian-Alarm-Clock-Description

This little beauty is something that all modern cooks take for granted.  It seems obvious now, but Soyer realized that mothers, chefs, and camp cooks have many things to attend to at once.  He wisely decided that a dinging countdown timer timer could take some of the strain away from cooking and make for better prepared meals.

The coming of the pressurized stove – The Crimean war, the Raj in India, and other colonial ventures undertaken during Queen Victoria’s reign spurred on great advances in campaign living and long-term camping.  The East India Company and the regular military encouraged officers to bring the comforts of home as whole careers were spent thousands of miles from home creating and running an empire.  From this period, the Brits gave us great folding furniture, camp bedding, portable furnishings, and the Gypsy caravan but it took a Swede to take us to the next level, and camp technology has never looked back.

The pressurized kerosene stove –

Primus1914

Image 1914.

From the Wikipedia Entry as of October 2014:

The Primus stove, the first pressurized-burner kerosene (paraffin) stove, was developed in 1892 by Frans Wilhelm Lindqvist, a factory mechanic in Stockholm, Sweden. The stove was based on the design of the hand-held blowtorch;

From this...

The origins of the camp stove!

Lindqvist’s patent covered the burner, which was turned upward on the stove instead of outward as on the blowtorch.

Svea_fotogenkök

Improvements and variations came quickly after their introduction.

…The Primus No. 1 stove, made of brass, consists of a fuel tank at the base, above which is a “rising tube” and the burner assembly. A steel top ring on which to set a pot is held above the burner by three support legs. Other Primus-style stoves may be larger or smaller, but have the same basic design. The No. 1 stove weighs about 2½ pounds, and measures about 8½ inches high with an overall diameter of just under 7 inches. The tank, about 3½ inches high, holds a little over two pints of kerosene and will burn for about four hours on a full tank.

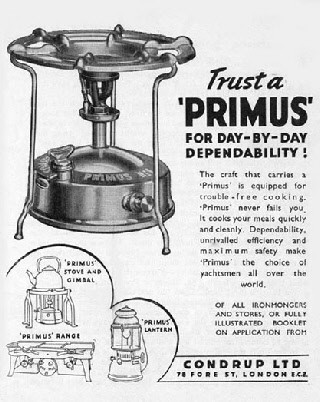

primuslowres

We think of this type stove as a camp stove but they were marketed far and wide for household use as well.

…Prior to the introduction of the Primus, kerosene stoves were constructed in the same manner as oil lamps, which use a wick to draw fuel from the tank to the burner and which produce a great deal of soot due to incomplete combustion.

The Primus stove’s design, which uses pressure and heat to vapourize the kerosene before ignition, results in a hotter, more efficient stove that does not soot.  Because it did not use a wick and did not produce soot, the Primus stove was advertised as the first “sootless” and “wickless” stove.

sverige270These stoves are still celebrated worldwide and are in use on every corner of the planet.  They are a labor-saving device that frees their owners from fuel collection and actually lower airborne pollutants in the immediate area.  They are also credited with limiting the natural deforestation that accompanies humans living in concentrated communities.

The ads give a hint as to how far and wide the Primus stove reached around the globe.

This Radius ad is interesting as it shows the kinship or reapplication of technology from blow torch to stove with only a little modification by the engineers.  Below, this advertisement for an aftermarket pressure cap shows the need for improvement as stoves could easily become clogged and explode as a pressurized bomb.  I narrowly escaped this hazard myself when my stove nozzle became clogged on an outing.  A chemical fire-extinguisher is never a bad Idea to have handy living on the road.

The designers continually improved this simple device with, among other features, a safety cap that intentionally failed at a lower pressure than that which would have caused the stove to turn into a brass grenade.  Although safety features were invented to reduce the number of serious accidents, I suspect these little contraptions are responsible for a fair number of burns and the loss of more than a few homes, autos, and RVs.

As with any successful product, there were and are many imitators of this relatively simple design and many still on the market models come from former Soviet Union, China, and India.

Judging by the marketing, they bring nothing but bliss and happiness to the laboring mother… but seriously, these devices were probably a huge boon to the housewife no longer in need of wood or dung for cooking fuel.

The switch to gasoline –

Although introduced in the early 20th Century, the Second World War and subsequent decade saw widespread popularity of the gasoline stove for military use.  Unlike kerosene, gasoline (or purified “white gas”) is truly explosive, not just flammable.  Placed under high pressure, these are potentially bombs.  However, gasoline or derivatives can now be found almost anywhere on earth with the spread of the internal combustion engine, making this a fuel of choice for international travelers.  As per usual with us humans, we chose practicality and convenience over safety.

The iconic early stove of this design is the Svea 123 as it it is a beautiful combination of design features including simplicity of construction, easy field repair, and heating power.

Svea_123_Optimus_99_cousin.

Classic Svea 123 and a close cousin.

Here’s a link to lighting the Svea 123 (and a little info about why they are so cool):  “DEMYSTIFYING THE SVEA 123

n.b. The original link was dead when I last checked but I have saved an archive copy here with credit to the author.

Variations on the theme are endless, from the Svea 123 (gasoline) to the Ultra-Primus double burner home range (kerosene).  The various designs proved themselves in kitchens, on river trips, mountain tops, and in virtually every modern backpacker’s gear in one form or another.  For much of the world, this style stove is still the centerpiece of kitchen cooking.

A different spin on the basic Svea design. The main feature of the 71 is it's convenient packaging.

A different spin on the basic Svea design. The main feature of the 71 is it’s convenient packaging for the traveller.

PrimusAd

Summitting  Everest, a pretty great endorsement.

As a side note to history, the design was so successful that many other companies copied the essential design.  Here are just a few ads for the Optimus line of stoves and lamps, another spin-off, from their own website showing a wide range of related products over the last century.

The modern era of the camp stove –

In my lifetime, liquid fuel backpacking stoves have undergone some serious refinements but overall, the system for liquid fuel stoves is essentially the same.  Safety has been a big issue, of course, but size (decrease) and fuel capacity (increase) are probably the biggest changes.  Many stoves use canister fuel (butane or propane), alcohol, or solid fuel pellets; but I won’t get into those as they are beyond our scope and interest here.

MSR_Patent_Model_9-XGK_Stove

A new era; the MSR XGK multi-fuel stove.

The final round of changes came from Mountain Safety Research and its later competitors.  The big innovation was to separate the fuel tank from the burner assembly and add a pressurizing system to the tank.  Small but efficient details were added like the self-lighting sparker, self-cleaning tube, and the inclusion of a lightweight wind screen.  I have used one of these for used with pretty good success but I still find myself choosing the Svea 123 for many journeys.

Links and Further Information –

This post is woefully inadequate in so many ways but it is meant as a quick overview of the pressurized liquid fuel stove we all love so much.  Here are some links to some great information on the web.

And my all time favorite, the Svea 123. We have been friends for many years.

The Base Camp is a specialist equipment internet retailer based in Littlehampton, Southern England since 1986.  They stock classic stoves and have an excellent selection of obsolete parts.

A H Packstoves Supplies and Parts – is an online seller with a wide variety.  He always has good stuff and some hard to find parts.

header_background_gradient

The Fettle Box is a good source for pieces and parts for your classic stove. I have had good luck with them.

Finally, the Classic Camp Stoves Forum.  Several images above were found here.  Information about virtually every kind of stove available.  History, art, repairs, tutorials, and reprints are all available on the Forum.

Click here for the mother load of information about Classic Stoves.

More stove ramblings to come…

Boy Scout Gear from 1925

This is a pretty good setup for any outdoorsman (our outdoors woman for that matter). By 1925, the scouts had worked out a pretty good uniform and gear setup based on many old experts not the least of which was the US Army.

If there’s a bit of a paramilitary look to the scouts it certainly owes much to its military background in Britain and further as a result of the Great War. Still, there’s a lot of good info to take away from this. These are truly the essentials.


The new internet Bushcraft world has very little on the old-timers knowledge.

Car Camping – bathing in camp

For most of human history we have moved across the surface of the Earth as more-or-less self-contained units. Rarely alone and generally with all the stuff we owned.

Obviously, this was before the age of Consumption as a way of life.

I love to see the details; the wash basin, table and chair, the little mirror…

Car camping in the 1920s.

It’s really no surprise then that we took to car camping as a natural progression in travel, especially in the West where movement was a theme and great open spaces we’re available. With an auto, long distances can be easily covered, there is plenty of space for essential gear, and we bring the solidness and security that the auto provides with us anywhere we need to go.
As for this photo, the beauty is in the details. I really enjoy the domestic scene here as the daily routine continues no matter where we are. The non-travellers I know seemed to lump life while camping or traveling as something very different than life at home. Maybe it’s different for me having been fairly transient for much of my early life and working on the road for many years. Living is done wherever you are.

Early Car Camping

I love finding old images like this.  They show that we never really change yet are on a continuum of adaptation.  The bows that support the canvas top on this (I believe aftermarket) truck bed are reminiscent of much earlier wagons of the Old West.

Camping in Yellowstone 1924 – Mattress on the fender, pots, pans and a tool kit on the side board, these spiffy fellas were ready for an adventure. Image – https://www.nps.gov/parkhistory/

Space was extremely limited in the cab of these old vehicles so if there were three on-board, I suspect someone, probably the boy, rode in back with the luggage.

Cozy Camp

I made it out for a brief stay in the eastern Ozarks this week.  The rain and cold came back just in time for my outing making it a little less comfortable than it could have been but I still enjoyed the time out.

20180306_181743

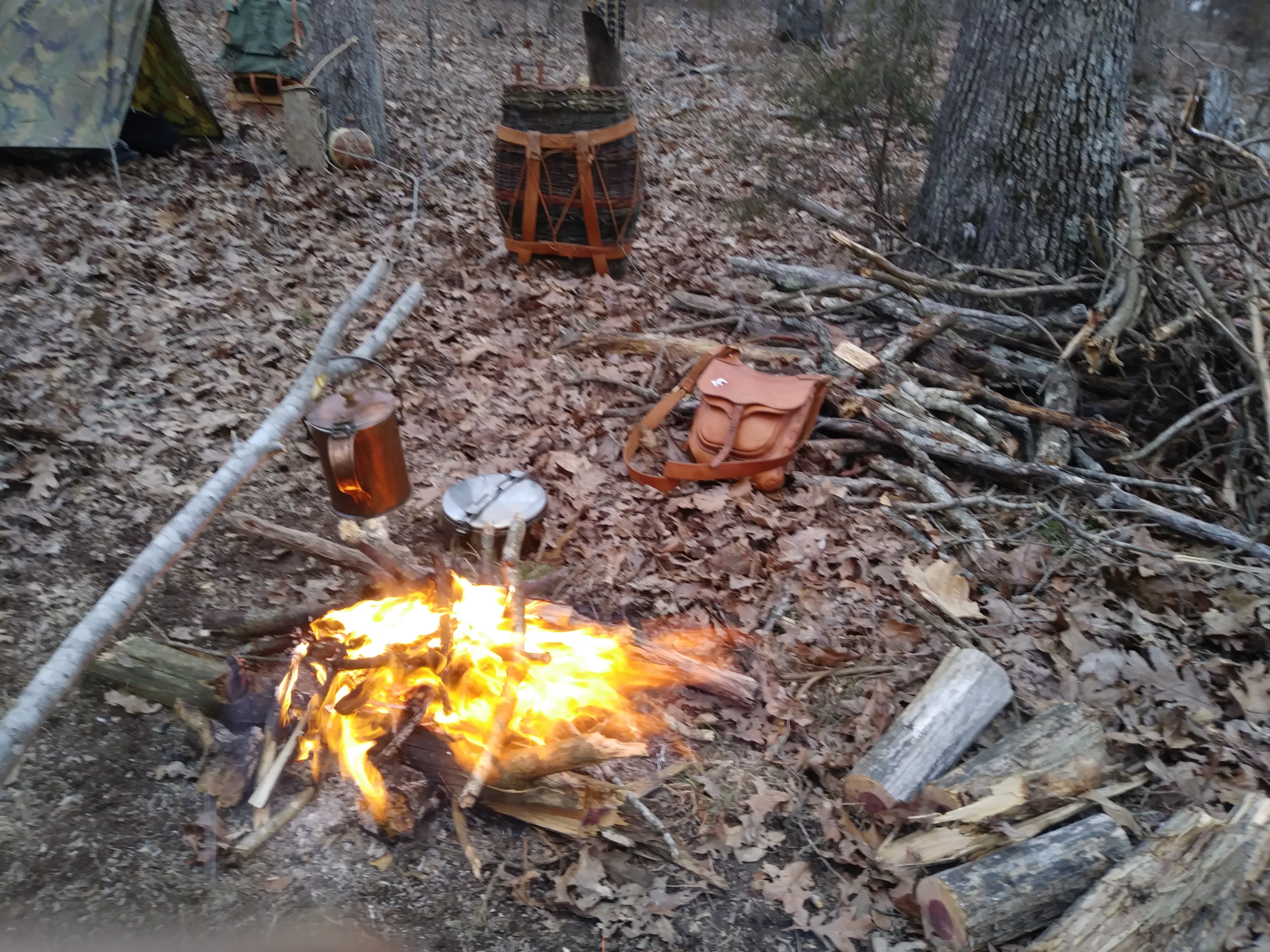

I chose to stay fairly low-tech with the exception of a sleeping bag instead of the old blankets and I sheltered under an old military poncho instead of the more usual canvas.  Since I was out, in part, to work on some crafts I packed in very heavily with tools and a few raw materials.
