Ghillie Shoe Commission

A while ago I received a request to make a pair of carbatinae (ghillie shoes) for a reenactor.  It was the first time I have done this long-distance without being able to measure the foot directly.  Luckily, we had good communication and I had a shoe last in his size so with these factors and the fact that this style is a fairly forgiving fit, I was able to create something he was happy with.

Being constructed from 12 oz Hermann-Oak harness leather, these should last for a very long time if not worn extensively on wet concrete.

I really love the simplicity of this design and continue to learn and modify my technique with each new pair.  With high quality commercially tanned leather, they can’t be made particularly cheap, but with high quality materials you certainly get what you pay for.

Very little sewing makes this shoe a fairly quick project to complete once the cutting is done.

This was the first time I used a last to make this type shoe but it was a big help in the forming stage.

Setting the pattern and cutting them out is most of the battle.

Once they’re broken in, they fit your foot like a leather stocking, allowing for a barefoot, but well-protected feel.  I certainly like this shoe.

Huaraches!

There are still Huaraches north of old Mexico.  As I prepare to resole my huaraches I thought it might be good to look back on them as a very viable hand-made shoe.

For a long time while searching for huarache construction techniques, I could only find the simplest tire sandals and many links to “barefoot” style running sandals.  However, a few years ago, I found Markus Kittner’s Huarache Blog and scoured it for inspiration and design secrets from real huaracheros in old Mexico.  He has done excellent work in documenting the process.

My first beautiful huaraches drying after being soaked to shape to my foot.  They were subsequently oiled and slicked down.  I owe much to the Huarache blog for so many great images and descriptions of traditional huaraches.

As a craftsman of sorts, I understand that making a “one-off” of something does not imply expertise.  Only replication builds a real understanding and mastery of the object being produced. However, this is not my first leather working or shoemaking project but a major improvement on a theme.  This style shoe is made on a last.  The shoe lasts I purchased on Ebay have finally been used to actually make a shoe.  I documented the process as it came together as best I could; my mistakes and changes included in the process.  This is not really a “how to” recipe for making a huarache but shows the process I used.

The lasts I found on Ebay.  The sole cut out, punched for strapping and nailed to the last.

The last shown here fits me well but are an Oxford dress shoe style, meaning they run a little long in the toe.  As I am making an open-toe design, I let the last hang over slightly in the front, squaring the sole to the shape of my actual foot.  New lasts are pricey (ca. 50 euros/$70 US), but I think it will pay in the long run to invest in a better design for myself and those people I might make shoes for.

Wetting out the first strap.

I didn’t show the strap cutting process as there is little to be learned about that.  It is a skill in itself, even if you have a strap cutter.  My Osbourne strap cutter can be seen in the upper right of this photo

Since this project was experimental, I used scrap leather, meaning I could only get about three foot (one meter) straps.  In future, I’ll probably use 6 foot or longer pieces (2+ meters).

Nailing the strap to the last.

I pre-punched holes in the mid-sole and away we go.  A little tallow on the straps helps cut the friction of the leather but ended up being not worth the trouble.  They were kept damp throughout the process.

Placing the twining thong.

This is a signature of the style I chose.  The vamp or tongue-like piece was later removed as I didn’t like the way it looked.  I’ll experiment more with that later.

Lacing and twining.

Unlike normal, I completely finished the first shoe and removed it from the last to check size and shape to determine any major changes that would need to be made.

A heel piece was added and laced up the back. I think this step shows the evolution of the strap sandal to the modern huarache.

The straps running under the mid-sole look like a problem here but are ultimately skived down, dampened, and hammered flat.

Straps ends as added in. Longer straps would lessen the ends here.

I used simple wire nails (as is traditional) to attach the soles but sewing would work too.

Ends to be trimmed and skived, and a finished sole.

Pulled from the last, they actually matched.  I don’t know why I was surprised but that made me really happy.

Preparing to nail the sole.

The method I chose to attach the rubber is fast and efficient, and I suspect rather tough.  The nails are pressed through the leather and rubber into a thick leather scrap below.  Otherwise, you would need to pry it up from the work board.  One surprise I learned over time was that the nails actually wore off on the underside before the rubber.

Nailing the sole.

Bending the nails in preparation for clinching.

The nails are bent over (inward) to prepare to “clinch” them.  There are no photos of this part of the process but this was done by setting the shoe back upright on a small anvil and hammering the nails down tight with a punch.  The pre-bending causes the nail to curl inward and back up into the sole.  Voila!  The Huaraches below have about five miles of hiking on them now and they’re beginning to have some character.

Huaraches you say?  Do tough guys wear such things?  In an era of cheap, slave-made garments, its easy to forget how self-reliant our ancestors were for such things as raiment. I include this photo of Capitan Alcantar I found on the Huarache Blog as a great historical image of a man of action wearing his huaraches and ready for war.

Click the image for more historic photos like this.

I hope this prompts someone out there in the world to take on the project of making their own shoes, whether for survival, uniqueness, or just as a challenge.  Making for yourself is a small act of revolution against a bad system.

Ghillie Making at Winter Count 2014

One of the many things taught at Winter Count this year was shoe making in the form of carbatina or ghillies.  These are relatively simple shoes notable for their one piece construction and generally involve very little sewing.  I am interested in how things are learned and for me, the process is more important than any other aspect.  Hopefully, students take away some knowledge that they can apply beyond the class setting and in an afternoon can learn something that they can use for life.

ghillieHistorical examples vary widely but tend to have a lot of similarity in the complex toe-cap.  Shoes are a difficult piece of clothing and protection because the fit is critical and even minor problems with the shoe will impact the feet in a negative way.

Marx-Etzel2The toe cap is formed by strips of leather overlapping which gives flexibility and room for expansion.  The simplest forms are one piece but better versions are found with insoles and outer soles to extend the life and create a sturdier shoe.

DSCN4029 DSCN4030 DSCN4031 DSCN4033 DSCN4034These were all made from premium oak tanned leather (ca. 8 oz. or 3.2 mm) which proves to be tough to cut but provides a long lasting shoe.  It was a great set of students in the classes and I think we ended up with 17 pair of shoes in the end.

An earlier post describing my journey into Ghillies can be found HERE.

Huaraches!

There are Huaraches north of old Mexico.

As a craftsman of sorts, I understand that making a “one-off” of something does not imply expertise and replication builds a real understanding of the object being produced. However, this is certainly not my first leather working or shoemaking project but a major improvement on a theme.  The lasts I purchased earlier in the year on Ebay have finally been used to actually make a shoe so I documented the process as it came along last week; mistakes and changes included in the process.  While searching for huarache construction, I have only been able to find the simplest tire sandal designs and many links to “barefoot” running sandals.  I recently found the Huarache Blog and scoured it for inspiration and design secrets from real huaracheros in old Mexico.

Sole cut out, punched for strapping and nailed to the last.

The lasts shown here seem to fit me well but are an Oxford dress shoe style, I think, meaning they run a little long in the toe.  New lasts are pricey (ca. 50 euros/70 US), but I think it will pay in the long run to invest in a better design for myself and those people I might make shoes for.

Wetting out the first strap.

I didn’t show the strap cutting process as there is little to be learned about that.  My fancy new Osbourne strap cutter can be seen in the upper right of this photo

Since this project was experimental, I used scrap leather, meaning I could only get about three foot (one meter) straps.  In future, I’ll probably use 6 foot or longer pieces (2+ meters).

Nailing the strap to the last.

Pre-punched holes in the mid-sole and away we go.  A little tallow on the straps helps cut the friction of the leather but ended up being not worth the trouble.

Placing the twining thong.

This is a signature of the style I chose.  The vamp or tongue-like piece was later removed as I didn’t like the way it looked.  I’ll experiment more with that later.

Lacing and twining.

Unlike normal, I completely finished the first shoe and removed it from the last to check size and shape to determine any major changes that would need to be made.

Heel added and lacing up the back. I think this step shows the evolution of the strap sandal to the modern huarache.

The straps running under the mid-sole look like a problem here but are ultimately skived down, wetted, and hammered flat.

Straps ends as added in. Longer straps would lessen the ends here.

I used simple wire nails to attach the soles but sewing would work too.

Ends to be trimmed and skived, and a finished sole.

Pulled from the last, they actually matched.  I don’t know why I was surprised but that made me happy.

Preparing to nail the sole.

This method is fast and efficient, and I suspect rather tough.  The nails are pressed through the leather and rubber into a thick leather scrap below.  Otherwise, you would need to pry it up from the work board.

Nailing the sole.

Bending the nails in preparation for clinching.

The nails are bent over (inward) to prepare to “clinch” them.  There are no photos of this part of the process but this was done by setting the shoe back upright on a small anvil and hammering the nails down tight with a punch.  The pre-bending causes the nail to curl inward and back up into the sole.  Voila!  The Huaraches below have about five miles of hiking on them now and they’re beginning to have some character.

Huaraches you say?  Do tough guys wear such things?  In an era of cheap, slave-made garments, its easy to forget how self-reliant our ancestors were for such things as raiment.  I include this excellent photo of Capitan Alcantar I found on the Huarache Blog as a great historical image of a man of action wearing his huaraches and ready for war.

Click the image for more historic photos like this.

Walking Shoes

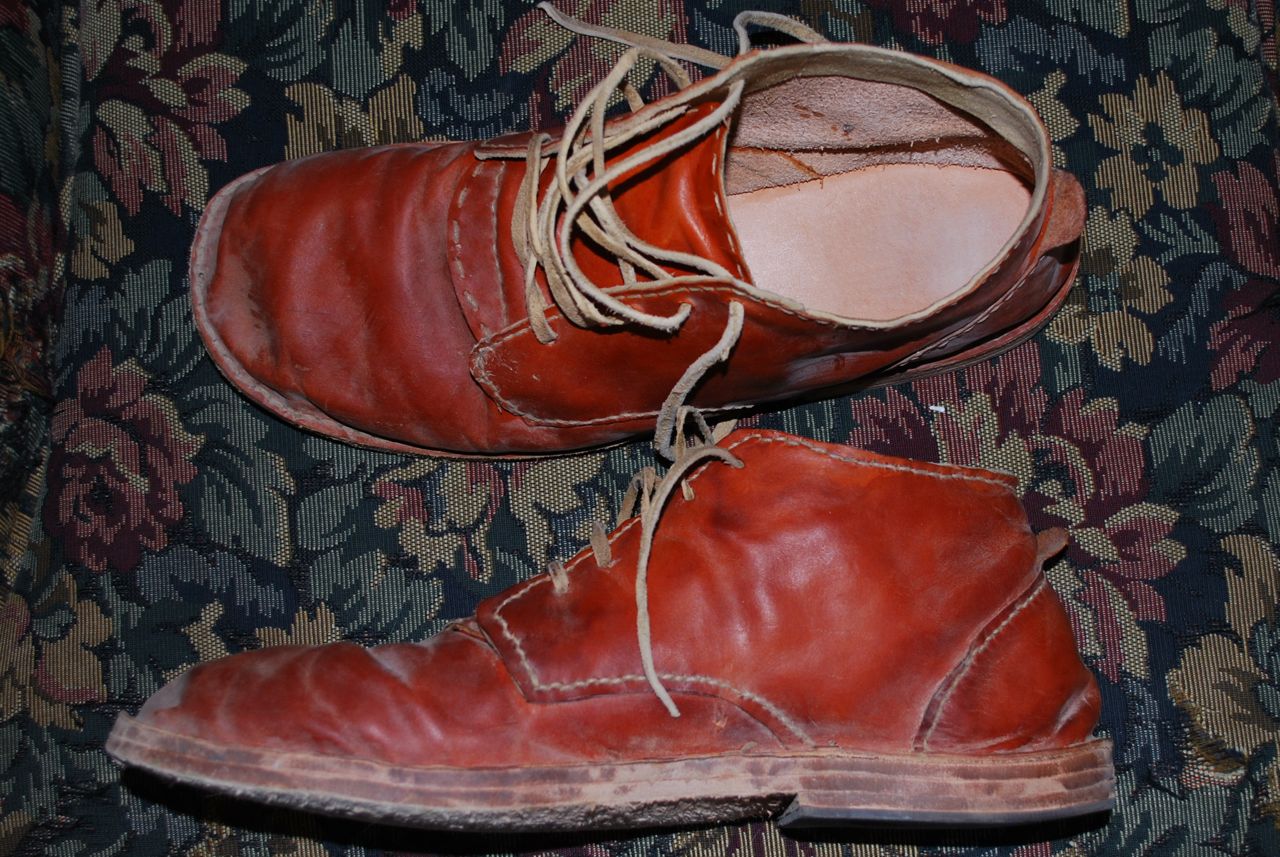

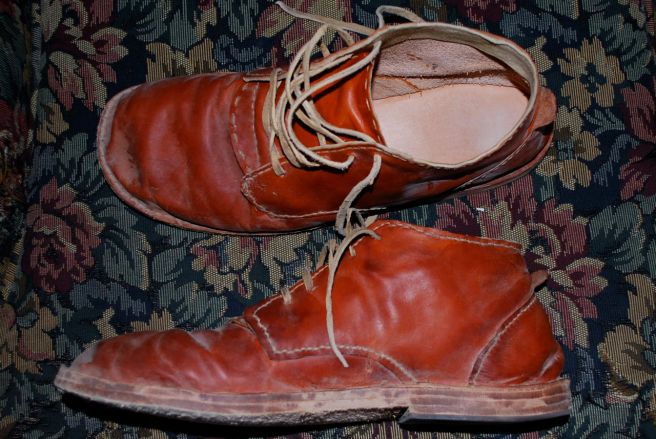

My new walking shoes.  Simple stitch-down design weighing in at about 14 oz (0.4 kg) each.  The leather is Hermann Oak 2/3 oz for the uppers and 12 oz (I think) for the mid-sole and out-sole.  There is also a double layer stacked heel that has a thin rubber layer on the bottom.

They have about 6 trail miles on them in this photo.  They are dyed “light tan” and coated in home-made dubbin.*

The goal was to create an extremely lightweight shoe that will protect from the gawd-aweful sand burrs, cacti, and other sharpies that get into the sandals.  They are loosely based on “desert boots” but provide a bit more protection.  They are re-soleable, environmentally friendly, and made without sweatshop labor.  Since I have little fashion sense, they can be worn with anything and in public.  My only change in design will be to make the toe portion of the upper in slightly heavier leather as they will hold their shape better.

*A waterproofing concoction, in this case made from beeswax, olive oil, and walnut oil.


A few more images:

The shoes are unlined.  Constructed with a double needle saddle-stitch.  I wasn’t even concerned with stitching on this pair so they aren’t perfectly straight or small.  The tongue is lined with brain-tanned deer hide and there is a band of brain-tan around the top edge for comfort.  The laces are also brain-tan deer from a heavier hide.

The out-sole stitch is trenched in about 1/8″ to protect the thread.

They may not be fashionable but I think they have style.





New Boots for the Young Lady

My daughter finally dove in and made her first pair of shoes, primarily from the instructions given by Mr Morris of Seamlyne Design.  I think it’s a fine tutorial for the uninitiated but would like to see a few photos along the way.  Anyway, they came out excellently and fit rather well.  Just FYI, they take about 10 square feet of leather as shown here.  Neither of us felt up to documenting the whole process but here are the basics.

Finished Boot, side.

Finished front.

Laying out the pattern.

Cutting out.

Cementing down the soles.

For durability, we added a rubber outsole of Soleflex (18 Iron). If you’re looking for a straight-forward tutorial on boot building, Mr Morris’ site is an excellent source.  Maybe I’ll make a pair later this summer and try to photo-document the process.
