Looking Back at the Horse

Tools and work benches always create lots of discussion and bring out opinions.  I am re-posting a couple pictures that feature my bodger horse as it has created a few new comments.  This horse has been slightly modified over the years but is essentially the same as when it was made 5 or 6 years ago.  For most of what I do, this tool is just about perfect.  Comments are always welcome.

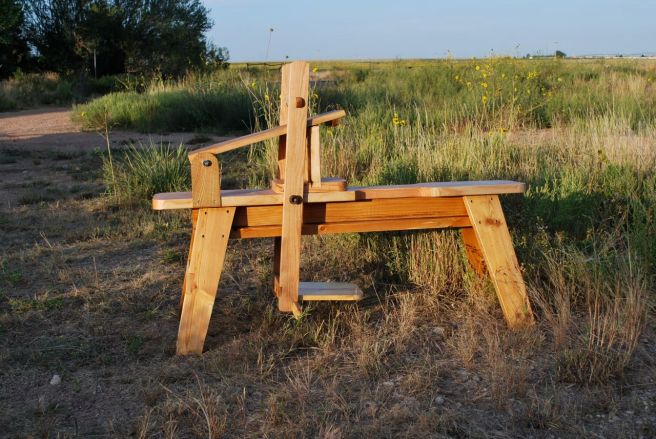

h1When I built this one, I had a full-size, long-bed truck.  Now, driving a smaller vehicle, I am considering re-engineering the whole thing to break down for packing.  If I stayed in one place regularly, this wouldn’t be a problem but I use it for teaching and demonstrations and is a little gangly to pack as is.  She traveled over 4000 miles with me this summer to a reenactment/demonstration and helped me teach a small woodworking class for a week.

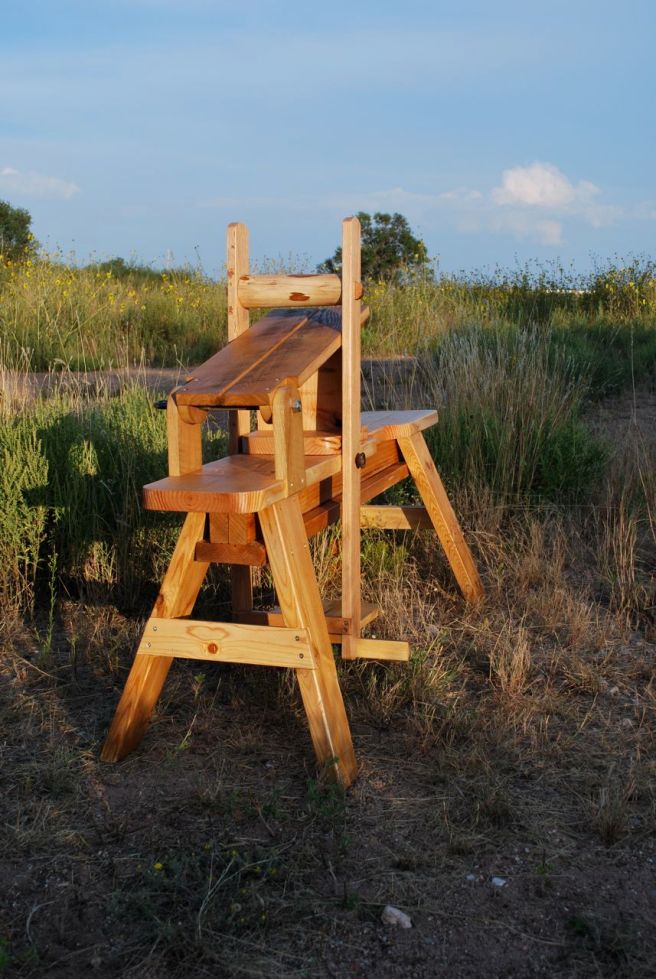

h2Even though this one is just fine and went together quickly, the next time I build one I intend to fancy it up with some fancy joinery.

DSC_0126A work horse like this becomes the center of the portable workshop and can serve many purposes.

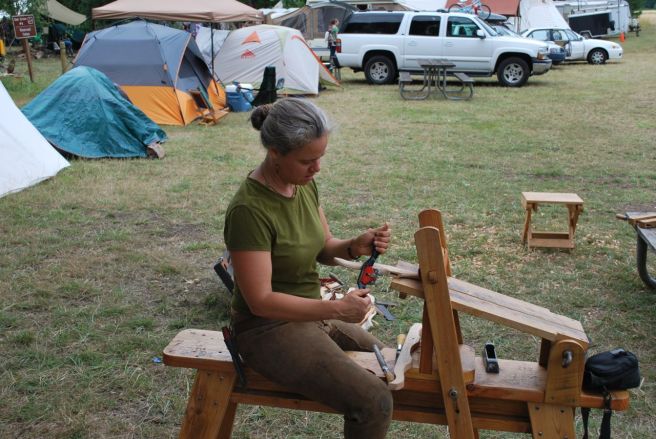

bodger15As I make modifications, I will update on this page as information on shaving horses is limited, even in the age of the internet.



Save

Pole Lathe

LatheHere’s an image of Mick’s pole lathe where my bowl and plate were created.  It’s hard to see all the workings from this view but it’s a pretty great set-up.  Unlike a modern, continuous motion lathe, the cutting is done on the down-stroke (about 2 1/2 revolutions) and the spring returns the system to the “up” position.  This type of woodworking is done with green wet wood; in this case, alder.

Bucksaw Again

For this project I moved my little operation into the living room of the house.  Creating sawdust and wood chips for the dogs to track around in their boredom is a real bonus.  But, on to the show…

Making a Bucksaw for carpentry, bushcraft, or just because they’re cool.

DSC_0901The little bucksaw I built last winter had never been “finished” even though I’ve been using it for a while now.  Having a few hours to spare I pulled out the knives, rasps, and scraper and decided to finish this once and for all before getting down to the next project.

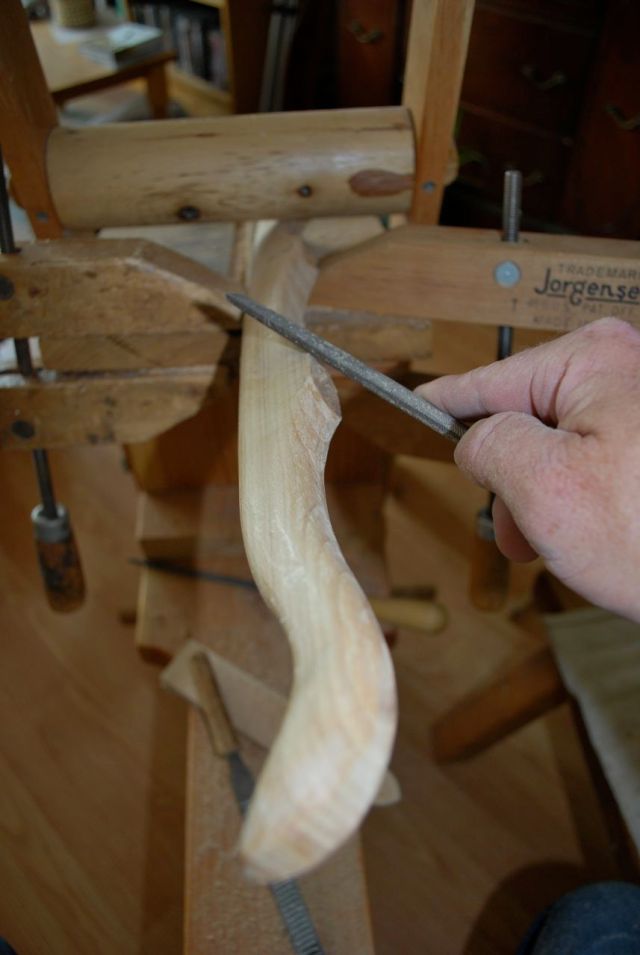

DSC_0904

The curves are merely aesthetic and can be ignored completely for a serviceable saw (if you can live with it).

I hope to put this together soon as a sort of “Instructable” for making frame saws, buck saws, and turning saws but for now, this will have to do.  Although common enough for the last couple millennia, frame saws have lost their place in the tool kits of carpenters and craftsmen, having been replaced by sabre saws, band saws, and the like.  There is a lot of beauty in the old design and a serviceable saw can be built in a short time with very few tools.  In fact, the one pictured here cost about $4 for the partial band saw blade, maybe a dollar for the screws and a few bucks for the long-toothed firewood blade.  The lumber was created from a less-than-perfect bow stave; a well-seasoned shagbark hickory bodged down to about 7/8″ thick.  The genius of this design is that it allows for an extremely thin blade to be stretched very tight for ease of work and a very clean cut.

DSC_0905

A file for cutting (top), a store-bought 20″ bow saw blade (middle), and a band saw blade ready to be cut (bottom).

A new, high quality band saw blade can be purchased for under $14 from a decent hardware store.  The above is a Delta brand 1/2″ blade with 6 teeth-per-inch (TPI) and is only 2/100ths of an inch thick.  That makes for very little waste which can be especially valuable when working harder to acquire materials like antler or bone.

DSC_0906Band saw blades are made in a continuous loop and are great for what they do but the first thing we need is to break the loop.  The metal is extremely hard, and fairly brittle which works to our advantage.  The edge of a sharp bastard file, like that pictured above can be used to score cross the blade.  You don’t need to cut all the way through, but just make a solid scratch across the surface.  Then the blade can be snapped by hand, making sure to not put any unnecessary bends in the blade.  Drilling the holes in the ends is the tough part.  As I said, the metal is very hard so, either you can use a punch to make a starter spot and drill through as is (but this will severely dull most drill bits), or the ends can be gently annealed in a forge or with a torch and drilled soft.

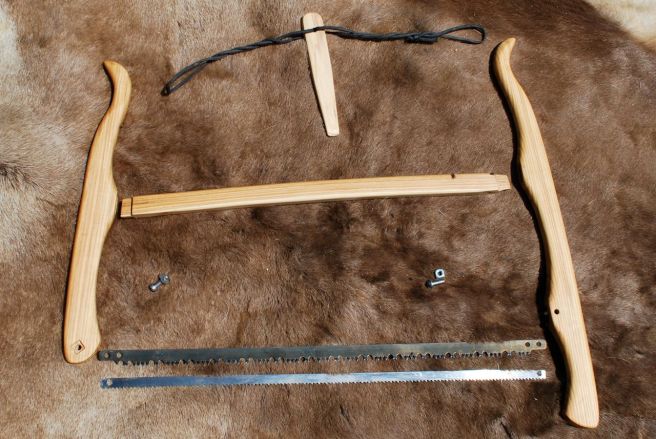

DSC_0909Here are all the components of the new buck saw with the new linseed oiled surface glaring in the sun.  The tensioner can be made from any strong cord (in this case 550 paracord), but any strong line can be built up or bailing wire will work (but is a little low-class and ugly and difficult to remove quickly).  The spreader bar (the horizontal piece) is morticed into the legs but is not fastened by anything other than the tension on the whole system.  Thus, the whole saw can be taken down in a few seconds and stuck into a toolbox or backpack for easy travel.

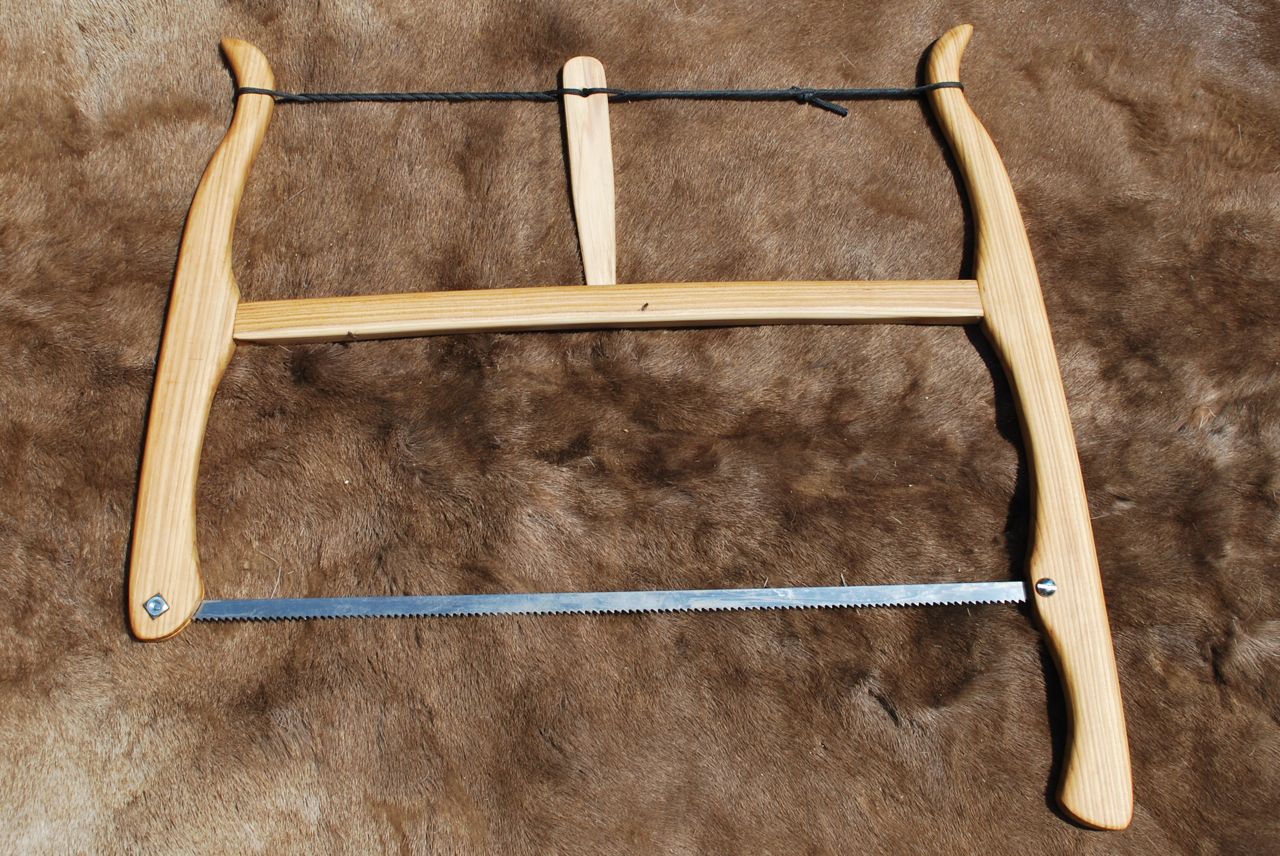

DSC_0910Above is the assembled saw under tension and ready to cut.  A good question was already asked as to “why the spreader is curved in this case?”  Because this was made from real wood, split with and axe, following the grain.  I could have worked to straighten it for looks but I like the fair curve it created and, as it has no bearing on the function, left it as is.

Hope this helps anyone wanting to make a saw like this.  Maybe I can offer this as a short, one day class at Rabbitstick or Winter Count soon.

Up soon: a turning saw.

The Wood Turner

A great short film about a bowl being turned on a treadle lathe.

http://

Info from the Vimeo Page:

Shot in a couple of hours on 2 separate afternoons, this is Leo who lives in a yurt with his partner and a variety of animals on the edge of Exmoor in the UK.
He is a craftsman of many talents, and this film shows him turning a piece of wood into a beautiful bowl using a traditional foot powered lathe (which he also built himself).
We started shooting on the first afternoon, but one of his sheep escaped, so we had to shoot the rest the following afternoon. Unfortunately, the weather was far from perfect and was actually raining lightly.
It doesn’t take him long to turn one of these bowls, and watching him work was a real pleasure.

Music –
Conversations with Angels – Luke Richards
Inner Dream – Barrie Gledden.

All shot using Canon 7D with EF 24 -105, f4 lens.
