Arrowology

Some Thoughts on Making Arrows, an Underappreciated Art –

I have been making my own arrows from scratch for a couple decades (since 1987 to be precise) and thought I’d showcase some I have made over the past few years.  I don’t generally make them to sell and I rarely hunt these days but there is something very satisfying and meditative in gathering the materials and constructing something so practical, with such fine tuning and narrow parameters in functionality.  I learned many tough lessons along the way, having no actual teacher, but I gleaned all I could from the historical resources I could find.  Most cultures of the world have a martial tradition of archery and each have their advantages and limitations.

A set of seven hand-turned poplar arrows in the English tradition.

The poplar arrows above were made from aged, straight-grained wood that was split along the grain then turned in a dowel cutter.  The nocks are reinforced with Bois d’arc (Osage orange) wood for added strength.  The heads are conical bodkins, fletchings are prime turkey wing secured with glue and silk binding.

A “primitive” set of cane arrows with hardwood foreshafts tipped with a variety of point types.

Making matched sets –

I sometimes come across beginning arrow-makers (fletchers) who only produce “one-offs” without attempting a matched set.  This is fine as an experiment or as a learning tool but does not suffice for someone who plans to actually use them for precise or regular use.  The minimum I make is three but I try to produce arrows in sets of six or twelve.  Since the plank used for the the arrows above worked out to produce exactly seven shafts, I kept the group together.

I believe it was a writing by Arthur Young where I first learned that to have a truly great set that sometimes you had to sacrifice a few as imperfect.  With all the work that goes into an arrow, it is painful to cull one out but sometimes it must be done.  The weights may match, the spine may feel the same, but one may just not fly as perfectly from the bow as the rest.  In the past, I have marked these and they become stump shooters of ones that you don’t mind risking on a long or difficult shot.

Finding a perfect set of rivercane shafts can involve a lot of looking, sorting, and luck.  People who want to purchase these hand-crafted materials and products rarely appreciate how much work goes into just gathering the materials.  A dozen matched cane shafts may come from sorting a hundred plants, then aging, curing, and straightening before the arrow can even be started.

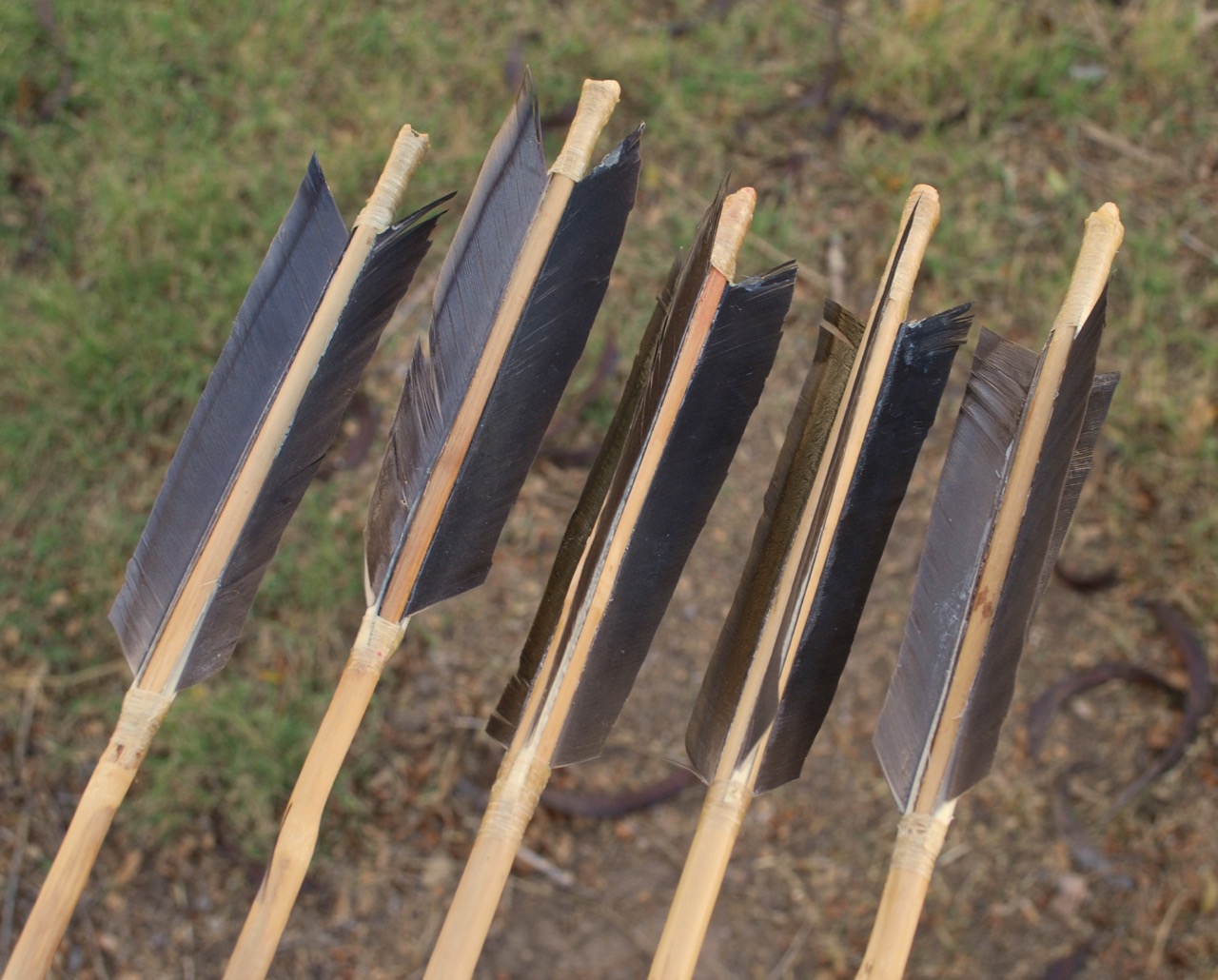

Rivercane (Arundinaria) arrows with reinforced self nocks.

Fletchings –

To produce enough fletchings for the above, one has to acquire three feathers per arrow, matched by side (all rights or lefts) and placement on the wing of the bird (e.g., second or third wing feather).  This could mean wings from seven to fifteen animals depending on how picky one is just to produce five sets of fletchings.

Antler point.

Points –

Finally, the points are considered based on the needs of the archer.  Will these be for hunting large or small game, target shooting, or just all around fun shooting?  I use bone, antler, stone, wood, and steel depending on the intended use of the set.  Although I purchase most of the metal points I use, a lot of time can go into making matched heads from natural materials.

More thoughts to come…

Trade Card from a Bow and Arrow Maker

An advertising card from when people appreciated hand made archery equipment.  No training wheel, gizmos, releases, or sights.  There is no date on the image but I suspect that late 18th century or early 19th century would not be too far off.  Apparently javelin throwing was in vogue at the time as well.  Now we have television, video games, and the internet.  I feel fortunate to live at a time when primitive technology is making a resurgence.  We felt very alone 20 years ago doing these things but an upside to the world-wide-web is connecting people with so much to teach each other.

Click the image to access the British Museum page for this item.

Mongolian bamboo arrows

More bamboo arrows from the leatherworking reverend.

The Reverend's Musings

Reproduction 14th C Mongolian Arrows

I’ve been doing a little consulting to my nephew*, who has been making a Mongolian bow for a school history assignment. His theory is that the Mongolian bow gave the advantage to the Mongols during their invasion of China in the 14th century, so he’s making one and testing it out. I disagree in a greater part, but it’s more important that he can research, develop and coherently defend a theory. I offered to make him some contemporary bamboo arrows to go with the bow, partially because I knew he wouldn’t have time, and partially because it was an opportunity for me to learn some new skills working with bamboo. He’s also going to be a little more forgiving than a paying client if I make a couple of mistakes while I’m learning, or take some shortcuts.

Paleotool has an excellent two parter on making bamboo arrows, I…

View original post 297 more words

Tartar Arrows from the Grayson Collection

Something for an arrow maker to aspire to.  There is much to learn from the old masters in their fields.  Wonderfully tapered shafts, great fletchings, and good use of paint.

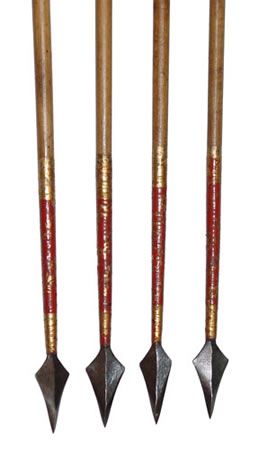

Crimean Tartar Arrows

Turkey, 18th–19th centuriesFour military arrows for use with Crimean Tartar bow. Straight wood shafts. Hawk feather fletching, three fletches, radial form, glued on. Bulbous self nocks, painted red on inside of notch. Hand-forged steel broadhead points, ridged at the base and thickened towards the tip; sinew reinforced. Decorated with red and gold paint.

86.5 cm long, shaft diameter is 0.8 cm.

MAC 1994-0745

Click here to access the Grayson collection, Museum of Anthropology, at the University of Missouri.
